What Size Mirror for 60 Inch Vanity? Widths, Heights and Light Spacing

Your mirror should make the sink feel easy to use without squeezing the sconces into the corners. For a 60 inch vanity, we'd start with a 52 to 56 inch mirror over a centered single sink; for a double, compare one 52 to 58 inch mirror with two around 24 inches each. BathGems lists Strada single- and double-sink combinations with 58 inch mirrors and a Sheffield double with two 24 inch mirrors, so a rigid percentage rule can reject combinations manufacturers actually sell. Measure the installed top, each mirror's finished outside edge, and every light's full body before the electrical boxes are fixed.

The BathGem's Blueprint

1. Measure the installed countertop, including any overhang, rather than trusting the nominal 60 inch label.
2. Mark the real sink and faucet centerlines. They determine where a useful reflection belongs.
3. Tape out the finished mirror frame and every sconce body and backplate, not just the electrical-box centers.
4. Test the complete outline against the wall return, backsplash, and lighting before rough-in. A good mirror size can still make a bad lighting plan.

Start With the Installed Geometry, Not a Percentage

Many mirror guides recommend leaving 2 to 4 inches at each side of the cabinet. That can be a useful shopping filter, but it's not a fit rule: a current Wyndham Strada double pairs a 60 inch wide vanity with a 58 inch mirror. Centered together, those outside widths leave just 1 inch per side, and Wyndham's accessory drawing specifies a 58 × 36 × 1 inch mirror with a ±1/4 inch dimensional tolerance. The surprise is how quickly a supposedly generous wall gets spoken for before the lights arrive.

The current Strada single, Strada double, and Sheffield double product pages each list a 60 × 22 × 35 inch vanity. What changes above the counter is the mirror configuration, not the cabinet's nominal width. This is why we wouldn't dismiss an almost full-width mirror as incorrectly sized, or assume two sinks must have two frames. Those choices become useful only after you know where the basin centers and wall edges really land.

Use these packages as evidence of what can work, not as permission to copy the layout onto another wall. A tall linen cabinet, tiled return, bulky frame, or 5 inch wide sconce body can use the margin the product image makes look generous. Check the drawings in the 60 inch bathroom vanity collection, then measure the finished elevation in your own room. The frame and lights need to coexist at the wall, not only look proportional on separate product pages.

For a 60 Inch Single Sink Vanity, Start at 52 to 56 Inches

For one centered basin, we like a broad mirror that leaves a little wall visible instead of making the vanity feel capped by glass. Compare the full outside widths of 52 and 56 inch frames first, then test the 58 inch Strada option if you're using an above-mirror light or have open wall on both sides. A side sconce may look slim in a catalog photograph yet occupy another 5 inches once its body and backplate are on the drawing. If the frame forces the sconce against a wall return, we'd narrow the frame or change the light, rather than move the useful reflection off the basin.

The sink isn't necessarily centered just because the cabinet is 60 inches wide. On an offset-basin 60 inch single-sink vanity, center the reflection where you'll actually stand and then check how the frame reads across the cabinet. Tape the outer corners onto the wall and look at them from the doorway as well as from the faucet. A mirror that looks balanced from the hall isn't doing its job if you have to lean sideways to see your face.

For a 60 Inch Double Vanity, Choose the Mirror Plan From the Sink Centers

Two sinks create two places where the mirror has to work, and a symmetrical cabinet front doesn't guarantee the sink positions are equally spaced. With one wide mirror, both faces need to fall within a comfortable reflecting field; with two, start from the actual faucet centerlines rather than dividing the cabinet into two imaginary 30 inch halves. Wyndham's Sheffield double includes two 24 × 33 inch mirrors, so the pair occupies 48 inches of horizontal width. That leaves 12 inches within the 60 inch span for the center gap and outer margins before you draw any sconces.

Across at least three independent Reddit remodeling discussions in 2025 and 2026, owners describe mirror layouts that left side fixtures crowded or made a three-sconce arrangement difficult to fit. Those are reports of planning problems, not an industry spacing standard. The useful lesson is that a sconce's backplate can consume the empty strip you expected between two correctly centered mirrors. We'd change the mirror shape or light arrangement before sliding the reflections away from the people using them.

One Mirror or Two?

Choose one wide mirror if the lighting belongs above the glass or three side sconces would compete for the same narrow strips of wall. We'd use two when each sink can hold a well-centered reflection and the fixtures still have room to breathe. Add both frame widths, all sconce body widths, the planned gaps, and the outer clearances, then compare the sum with the wall you actually have. Our double sink vanity planning guide carries that same sink-centerline logic through the plumbing and storage below.

Build the Vertical Stack Before You Choose Mirror Height

Don't start with a universal countertop-to-mirror gap. Mark the finished floor, counter height, backsplash, highest point of the faucet, mirror frame, reflecting surface, and light body in one elevation. A taller gooseneck faucet can push the mirror higher, and moving the mirror up steals the space you expected for an overhead light. A width that looks right in isolation can still leave you with a mirror that's too high for someone using the sink.

If your project is subject to the 2010 ADA Standards, Section 603.3 requires the bottom of the reflecting surface above a lavatory or countertop to be no more than 40 inches above the finished floor or ground. The Access Board's 74 inch top-edge recommendation is advisory, not a second mandatory height requirement. The measurement is to the reflecting glass, not the decorative outer frame, which matters if the frame is thick. Typical private residences aren't automatically covered by the ADA, so confirm the rules that apply to your project.

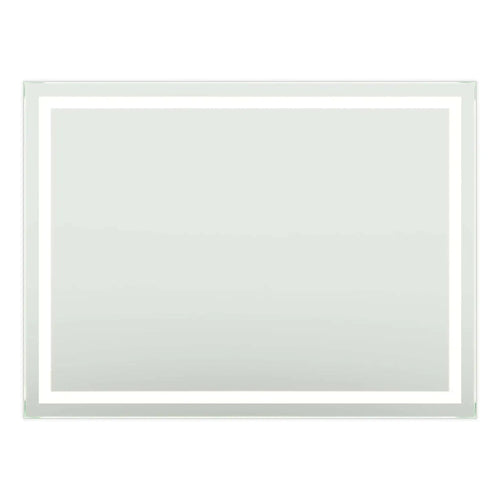

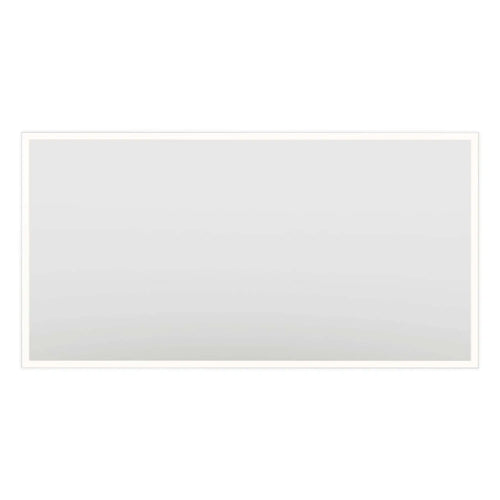

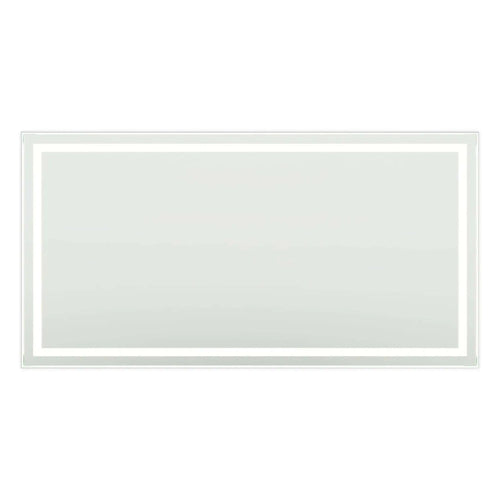

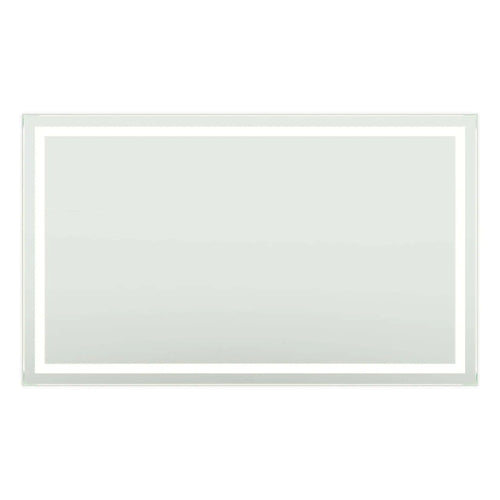

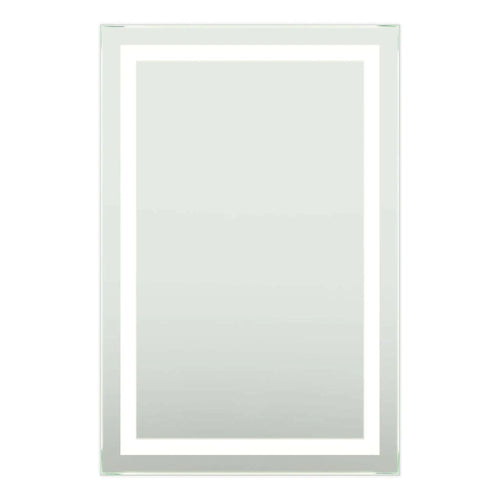

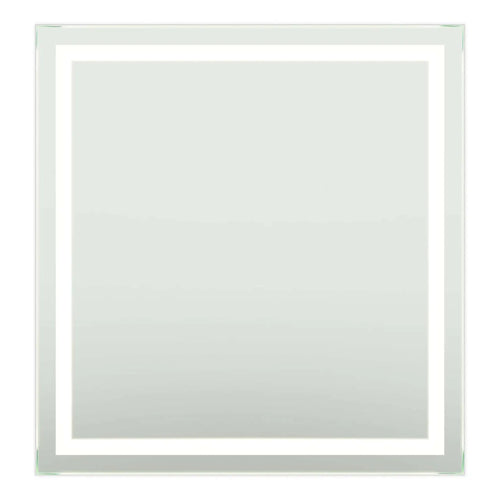

If an overhead light won't fit without lifting the mirror too high, a surface-lighted LED mirror is worth considering. BathGems lists Wyndham's Lucia at 48 × 36 inches and at 24 × 36 inches, sizes that can serve a single position or a pair of sinks when the wall geometry allows. Its integrated light removes the need to reserve wall space for a separate bar above the mirror, but the electrical connection and the room's general lighting still need planning. We'd verify the exact LED color temperature and wiring requirements before using that shortcut, especially in a warm-toned bathroom.

Size the Vanity Light to the Mirror, Not the 60 Inch Cabinet

Visual Comfort's lighting guide recommends an above-mirror linear bath light at least three-quarters as wide as the mirror, without extending beyond its edges. Treat that as manufacturer design guidance, not an electrical rule. A 48 inch mirror therefore suggests a starting light width of 36 inches, while 52, 56, and 58 inch mirrors suggest 39, 42, and 43.5 inches respectively. The mirror creates the lighting field, so sizing the bar from the cabinet alone can leave a fixture too narrow for the reflection it's meant to serve.

For side sconces, the same Visual Comfort guidance places the center of the backplate about 60 to 65 inches above the floor, just above eye level. Draw the fixture's full height above and below that mark, since a tall body can still crowd the mirror or backsplash even when its centerline is sensible. Don't let an electrician's neat row of boxes substitute for a full-size wall drawing. Once the boxes are closed into tile, changing the decorative fixture can become a much bigger project.

Mirror and Sconce Spacing Is a Backplate Problem

The cleanest spacing rule is geometry rather than a memorized gap. Suppose a 5 inch wide sconce is centered 3 inches from the mirror's outside edge: half the fixture is 2.5 inches, leaving just 0.5 inch of visible clearance. A 2 inch wide sconce on the same centerline leaves 2 inches of clearance instead. The electrical box hasn't moved, but the room reads differently because the fixture body occupies less wall.

A center sconce between two mirrors has to clear both frames, and its body may be wider than its backplate. If you push the frames outward to make room, the mirrors may no longer line up with the sinks; if you shrink them too much, the reflecting fields become frustrating to use. We'd tape the three finished fixture outlines before moving an electrical box, including the mounting tolerances in each manufacturer's drawing. Pencil dots only show centers, not collisions.

Check the Tub or Shower Zone Before You Finalize Lighting

Near a tub or shower, fixture type and location rating can matter more than the mirror's visual balance. Under the 2021 International Residential Code, Section E4003.11 restricts cord-connected lights, suspended luminaires, track lighting, pendants, and ceiling fans within a zone extending 3 feet horizontally and 8 feet vertically from the tub rim or shower threshold. It also calls for luminaires over the tub or shower's actual footprint, up to that 8 foot height, to be marked for damp locations and for wet locations where subject to shower spray. The section doesn't mean every properly listed wall sconce is prohibited within 3 feet of the tub.

The IRC is a model code, and jurisdictions can adopt different editions or amendments. We'd ask the electrician to check the actual fixture listing and wall position before approving decorative lights near the bathing area. This is one reason we'd settle the mirror, faucet, and lighting design while the wall can still be changed. A drawing that fits geometrically isn't necessarily an approved electrical layout.

Choose the Mirror Frame After the Measurements

A frame should answer the vanity and faucet, not rescue a sizing mistake. A slim black rim can keep a dark cabinet restrained; brushed nickel can bring a quiet edge to white oak, while satin brass warms a painted white vanity. Judge the samples under the actual sconce light, since metal finishes chosen weeks apart can look related online and strangely loud on the same wall. We'd lay out the faucet, drawer pulls, mirror frame, and light finish together before ordering the last piece.

Care matters because cleaner sprayed at the mirror often lands on the cabinet or frame below. James Martin's wood-care guidance says harsh chemicals, abrasive cleansers, and scouring pads can remove the finish; Wyndham's written warranty does not cover failures caused by improper maintenance. Neither statement gives you a universal rule for every mirror frame material, so follow the instructions for the exact finishes you buy. We'd put glass cleaner on the cloth rather than spraying across finished woodwork.

Buy in This Order

Choose the vanity and confirm its installed width, then record the sink centers and faucet height. Select the mirror by its finished outside dimensions, place the exact light fixtures around it, and choose the frame finish only after the layout works. Check the countertop overhang, tile edge, wall return, neighboring cabinet, and door view in the same taped elevation. An attractive mirror ordered from a photograph shouldn't decide where the electrician has to put a box.

If you're still choosing the cabinet, compare bathroom vanity sizes using the actual product drawings, then return to the wall with the faucet and lighting dimensions in hand. One sink and two sinks create different use positions even when the cabinet width is identical. A full-size tape mockup, followed by an electrician's check of the proposed fixture locations, is the next step that protects the room from an expensive last-minute compromise.

Frequently Asked Questions

Is a 48 inch mirror too small for a 60 inch vanity?

No. A 48 inch mirror can be the right call if a side wall, cabinet, or sconces need the remaining space, but outline the finished frame so you still have a useful reflection at the sink.

Should the mirror be centered over the sink or the vanity?

With a centered basin, those centerlines usually agree. With an offset basin, we'd prioritize the reflection at the faucet, then check how the whole wall looks from the doorway.

Do I measure the mirror glass or the outside frame?

Use the full outside width and height when planning the wall. The frame consumes clearance beside sconces even though it doesn't increase the reflecting area.

How high should the mirror sit above the vanity?

Start with the actual faucet, backsplash, and the people using the sink rather than a fixed countertop gap. On a project where ADA 603.3 applies, the bottom of the reflecting surface above a lavatory or countertop must be no higher than 40 inches above the finished floor.

What size vanity light works over a 60 inch vanity?

We'd size an above-mirror light from the mirror rather than the cabinet. Visual Comfort's guidance starts at three-quarters of the mirror width without letting the light extend beyond the mirror edges.

Can an LED mirror replace a separate vanity light?

A surface-lighted LED mirror can free up space above the glass, but check its actual brightness, color temperature, and electrical connection. We'd keep the bathroom's general lighting plan separate instead of expecting one mirror to light the entire room.
